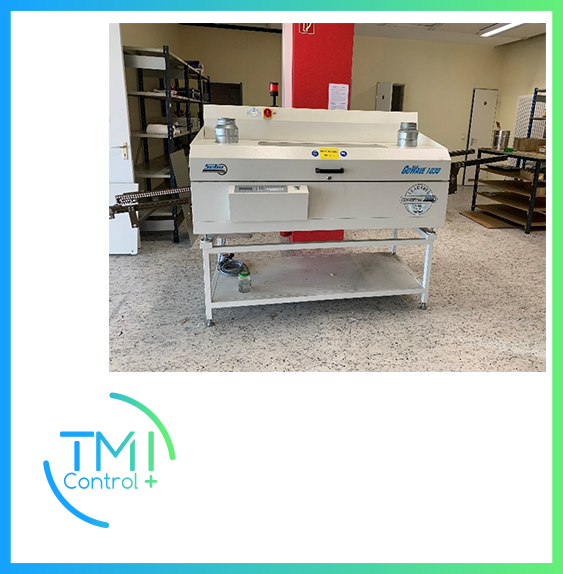

SEHO - GoWave 1030

SEHO - Wave soldering machine GoWave 1030 ROHS
Used equipment, refurbished in 2022

- Vintage : 2006
- Dimensions (L x l x H) : 3000 x 820 x 1500 mmm
- ROHS pot with epoxy coating
. Tin capacity : 150 Kg
. Power rating : 4,5 Kw
. 1 nozzle CMS multi-jets 340 mm width
. Maximum wave heigth : 7 mm
- Roll conveyor for carriers (carriers not included)
. Conveyor speed : 0,3 - 2,0 m/mn
. Max. board dimensions (L x l) : 410 x 340 mm
. Manually adjustable conveyor angle : 6 - 8°
. Inlet motorized conveyor
. Outlet manual conveyor
- Infrared pre-heating
. Dimensions (L x l) : 700 x 400 mm
. Tunel length: 700 mm
. Power rating : 3 Kw
. Température max. : 420° C
. Pre-heating time controlled by soft
- Spray ATS fluxer
. Flux flow quantity adjustable
. Tank volume : 0,7 L
- Extraction chimney for flux
. 3 CS filters
- Front HMI
. LCD screen
. Storage capacity : 100 programmes
- Beacon 3 colors ligth
- Main circuit breaker
- Power inlet : 400 Volts (3P + N + T)
- Pressurizeds air : 6 bars
- Exhaust : 2 sorties Ø 150 mm
- CE stamp

machine_contact

Refurbished

Thorough check-up of the equipment before complete refurbishment in our workshop, carried out by a highly skilled team, eventually tested before release & shippment

Installed in your factory

Material release, setting on the SMT line and start-up of the equipment carried out by a skilled & experienced engineer. We can also assist you during the start-up of production.

Training included

User training, programming & maintenance training ensured by a skilled engineer

Guarantee

All products are guaranteed to ensure the continuity of production, similar to what you would expect from a brand new equipment

Financing

We offer a quick turnkey solution which will safeguard your capex capability for other invests

Maintenance contract

Preventive annual maintenance to guarantee your production continuity and significantly decrease the maintenance cost of your SMT production line
