SMT - Four de refusion QP L

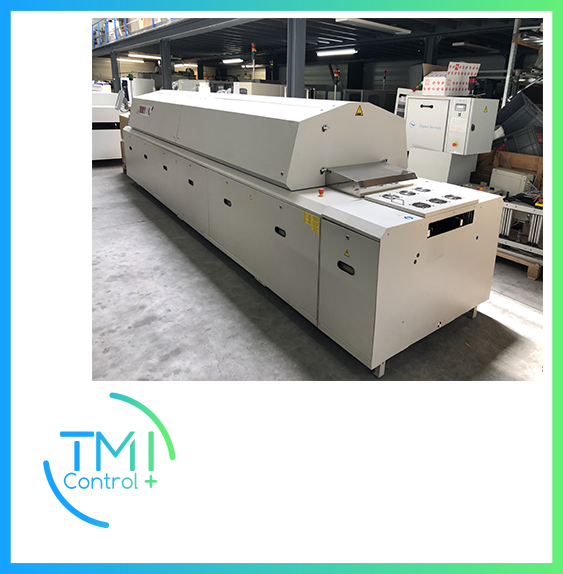

SMT - Reflow oven type Quattro Peak L N2
Refurbished equipment in 2023

Vintage : 2007
S/N : 1337-611-0407

- Oven equipped with a nitrogen inerting system
- Weight : 2500 Kg
- Heat transfer : 100% full convection
- Electric vault opener
- Process area length : 4925 mm
- Heated tunnel lenght : 3439 mm
- Active convection zone : 3011 mm
. 6 top and bottom heat zones
. Max preaheat température : 300°C
. Max reflow température : 350°C
- Warm-up time : ≃ 30 min.
- Cooling lenght : 1752 mm
. 2 top cooling zones
. Internal heat exchanger for cooling

- Pin chain conveyor
. Pin length : 3 mm
. Automatic conveyor width adjustment
. Automatic oiling
. Transfert direction : left to right
. Usable width : 10 - 460 mm
. Allowable components clearance : 30 mm above below
. Conveyor speed : 0,2 - 3 m/min.

- Central support with trapezoidal support chain
. Automatic oiling
. Automatic position and height adjustment

- SIGMATEK Industrial PC
- Operator interface : 15'' color touchscreen on articulated support
- Exaust : 1 x Ø 153 mm
- Max exaust : 1 x 800 m3/h
- Air or nitrogen supply : 8 bars
- Nitrogen consumption in process : 9 to 13 m3/h
- Power supply : 400 Volts (3P+N+T) / 110 A / 75 KW
- Consumption in process : ≃ 12 KW/h
- 3 color light column with buzzer
- 2 emergency stops on the front
- Main power on the back
- Color : ESD RAL 7035
- SMEMA 2 communication
- Complies with CE standard
