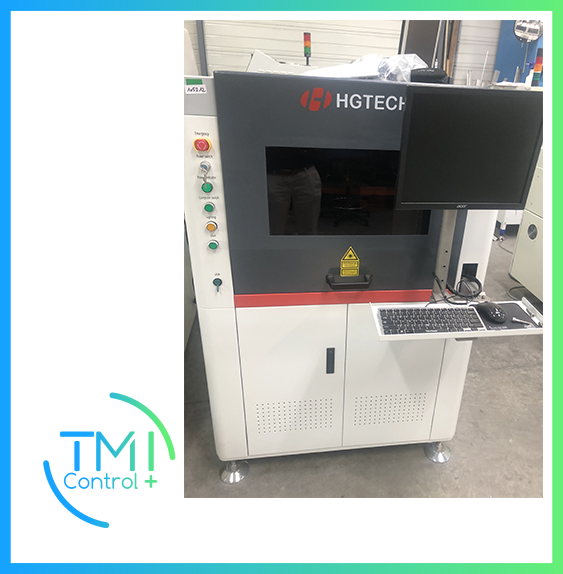

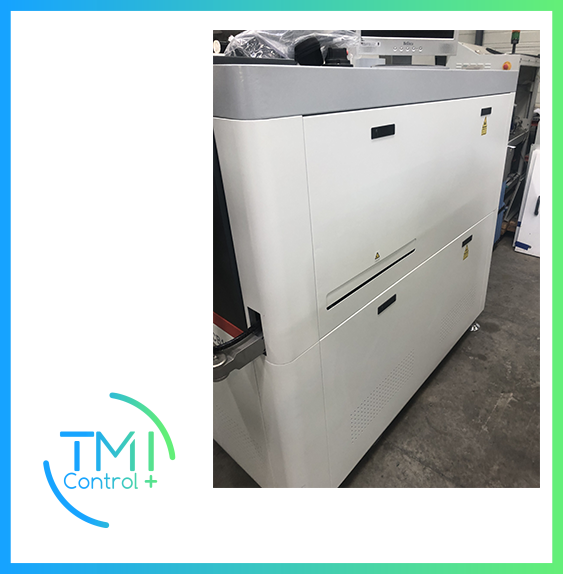

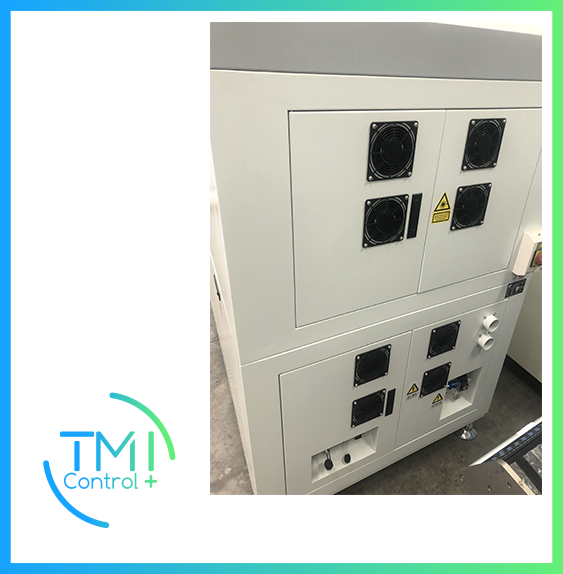

Laser GGTECH - LCB 10C D Dual Head Laser Marking Machine

Laser HGTECH - LCB 10C Dual Head Laser Marking Machine (105212)

Laser GGTECH - LCB 10C D Dual Head Laser Marking Machine

- Demo machine, vintage 2021
- Dual source laser marking system allowing simulatneous marking on both sides of the PCB
- Overall dimensions (L) 1000 mm x (W) 1600 mm x (H) 1500 mm
- Weight: 1200 Kg

- Standard features:
* Automatic marking with high precision & efficiency CCD positioning system able to check the code after marking process
* Conveyor can be connected with SMT production line
- Friendly HMI

- CO2 10W SYNARD laser source/ 10600 nano m wave length
- Life time: > 45,000 hours in operation
- RAYLASE galvanometer, speed up to 7000 mm
- Cognex industrial camera 2 M Pixels
- Conveyor running direction: L to R or R to L
- Adjustable conveyor width
- Tranport height: 870 mm - 930 mm

- Board dimensions:
* Min/Max: 50 x 50 mm - 460 x 510 mm
* Thickness: 0.5 à 3 mm

- Minimum marking dimensions: 2 mm x 2 mm
- Repeat positioning accuracy: +/- 0.1 mm (CCD camera)
- Support marking code: Code128, code 39, DataMatrix, QR code

- Power supply: 220 V / 50Hz / 2.5 KVA
- Pressurized air: 0.5 - 0.7 MP
- SMEMA interface

- Integrated fume extraction system APT - HP255

* Max flowrate: 250 m3/heure
* Pre filter and main filter
* HEPA filter can filtrate 9.997% of particules with diameter > 0.3 micro m
* Power supply: 380 V / 50Hz / 2.6 KW
* Sound rating: 66dB
* Variable spêed driver system
* Dimensions: (l) 500 mm x (p) 480 mm x (H) 1240 mm
* Weight: 100 Kg
