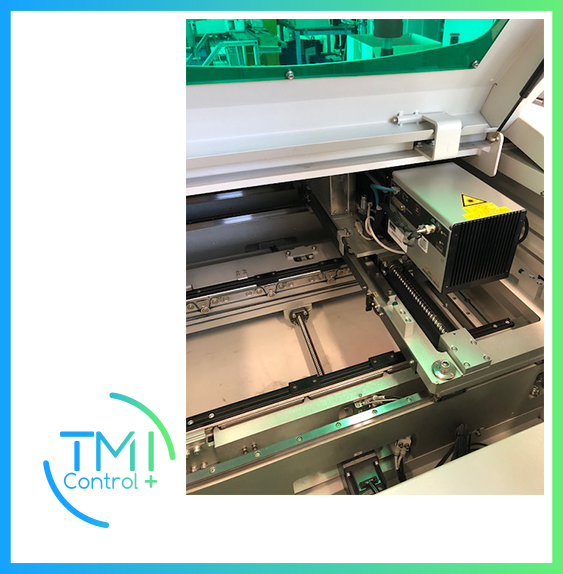

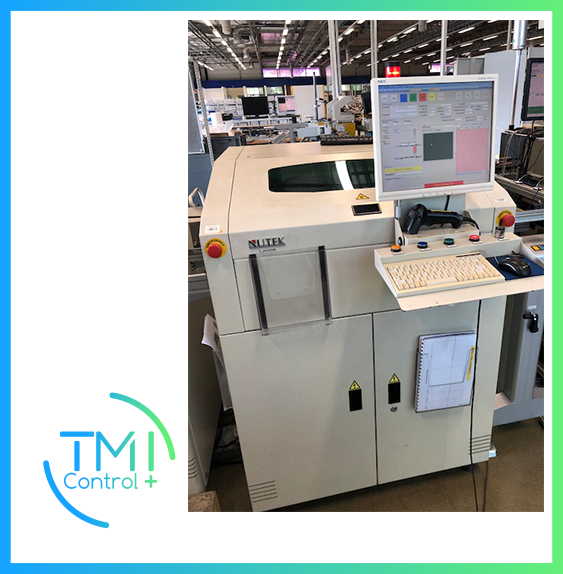

Laser Nutek LMC2100HE

- Laser Type: 10 Watt CO2
- Laser class: Class 4
- Housing class: class 1
- Vintage: 2009
- Marking area: 70 mm x 70 mm per position / 508 mm x 508 mm total coverage
- Marking speed: 225 characters / seconde max.
- Barcode type: all barcodes & 2D codes
- Conveyor type: 3mm ESD edge belt
- Conveyor speed: 0-12 meters / minute
- Conveyor width: automatic
- PCB width: 65 - 508 mm
- PCB length: 80 - 508 mm

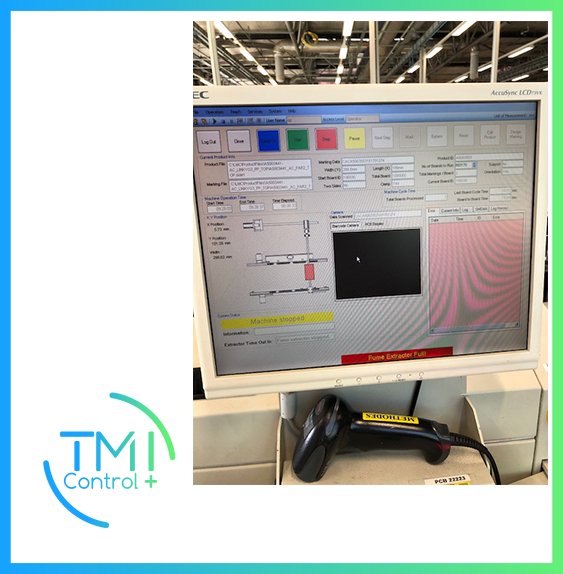

- System software: Windows NT 4.0
- Conveyor direction: Left to >Right
- Conveyor Interface: SMEMA
- Colour: RAL 9002
- External dimensions: l 1000 mm x w 1635 mm x h 1555 mm
- Weight: 450kg
- Power supply: 230vAC/50Hz/1Ph
- Power consumption: 750VA max.
- Air supply: 5 bar
- CE stamp

machine_contact

Refurbished

Thorough check-up of the equipment before complete refurbishment in our workshop, carried out by a highly skilled team, eventually tested before release & shippment

Installed in your factory

Material release, setting on the SMT line and start-up of the equipment carried out by a skilled & experienced engineer. We can also assist you during the start-up of production.

Training included

User training, programming & maintenance training ensured by a skilled engineer

Guarantee

All products are guaranteed to ensure the continuity of production, similar to what you would expect from a brand new equipment

Financing

We offer a quick turnkey solution which will safeguard your capex capability for other invests

Maintenance contract

Preventive annual maintenance to guarantee your production continuity and significantly decrease the maintenance cost of your SMT production line
